AIR CONTAINER INFORMATION
전국 주요 항만 및 물류 거점을 잇는 최적의 운송 솔루션

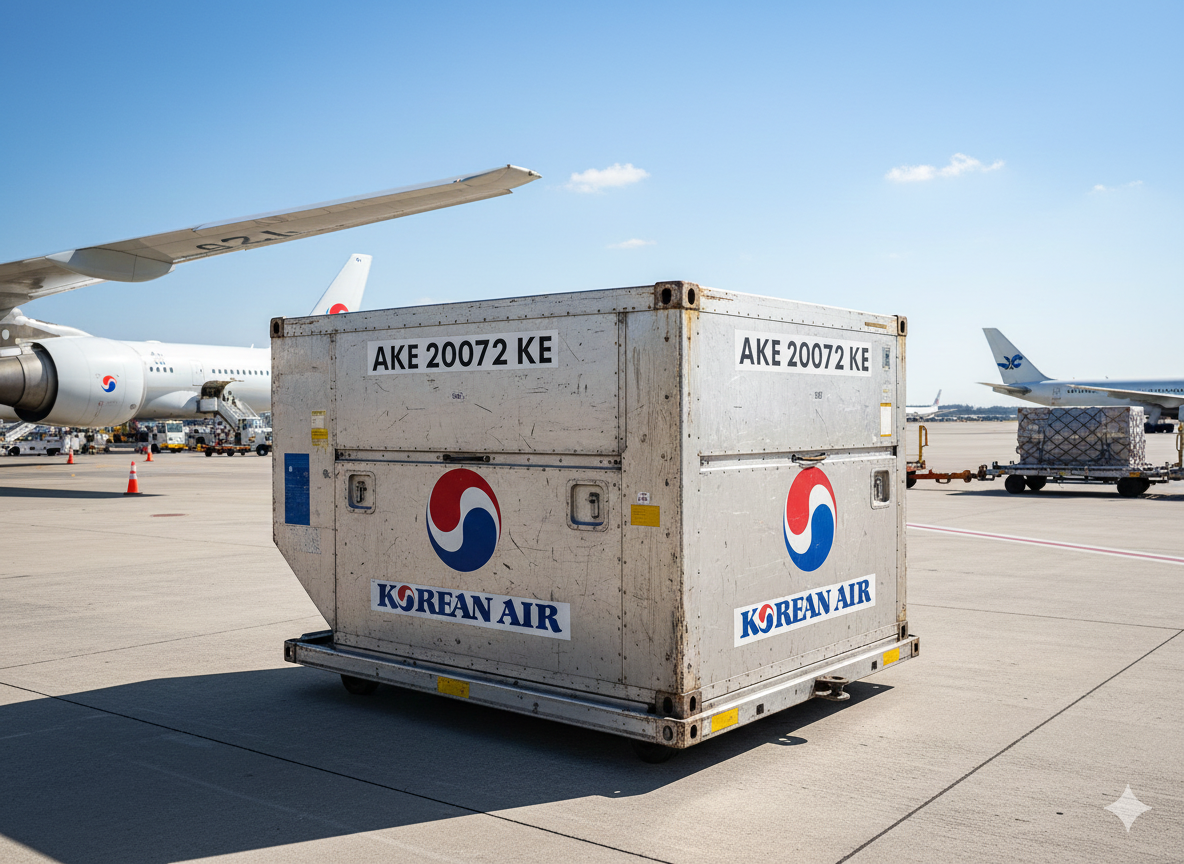

LD3 CONTAINER
| ULD TYPE (IATA CODE) |
UTILITY | LOADING POSSIBLE AIRCRAFT TYPE |
| LD3 CONTAINER (AKE) |
GENERAL CARGO |
B747 B747F B777 B777F A380 A330 A300 (LOWER DECK ONLY) |
| MAX CAPACITY (TARE WEIGHT) |
DIMENSION (INCH) |
|
| 1,588KG (114KG) | 60.4 x 61.5 x 64 |

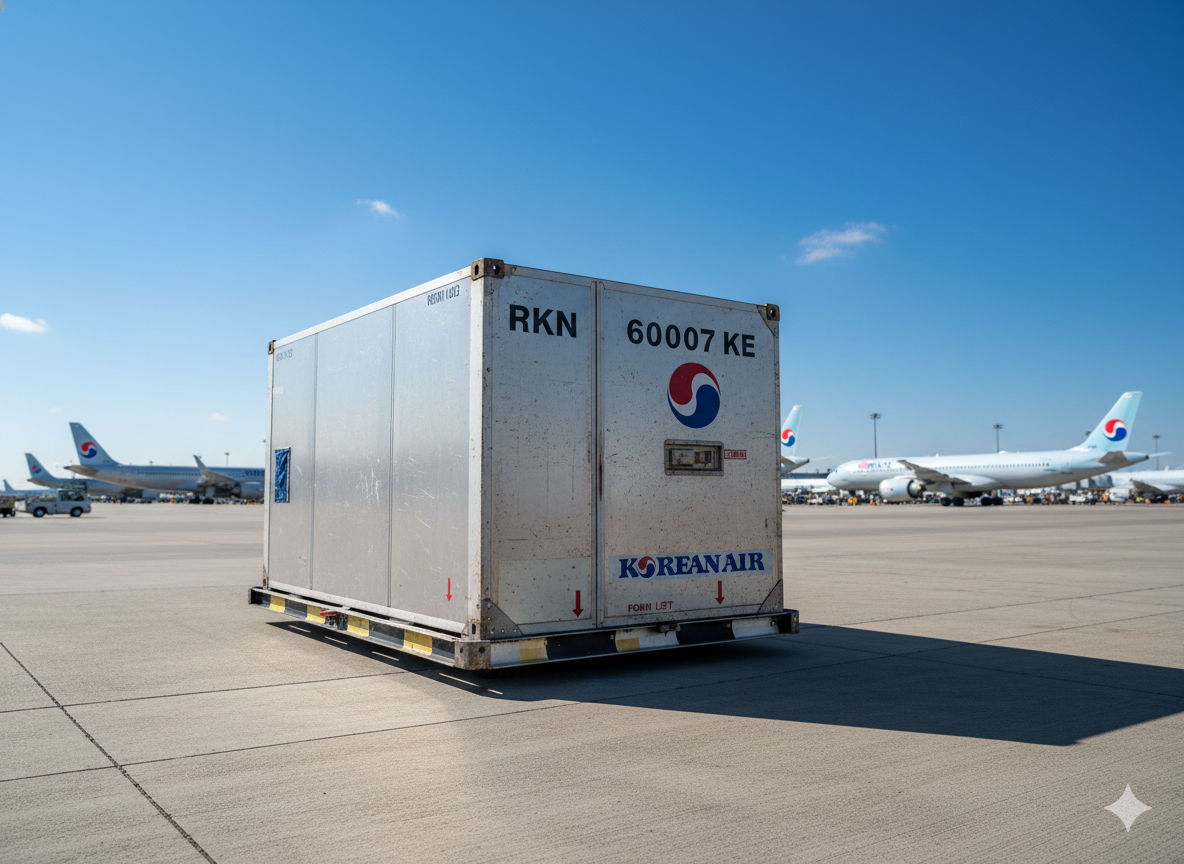

LD3 REFRIGERATED CONTAINER
| ULD TYPE (IATA CODE) |
UTILITY | LOADING POSSIBLE AIRCRAFT TYPE |
| LD3 REFRIGERATED CONTAINER (RKN) |
PERISHABLE, FROZEN CARGO |
B747 B747F B777 B777F A380 A330 A300 (LOWER DECK ONLY) |
| MAX CAPACITY (TARE WEIGHT) |
DIMENSION (INCH) |
|
| 1,588KG (260KG) | 60.4 x 61.5 x 64 |

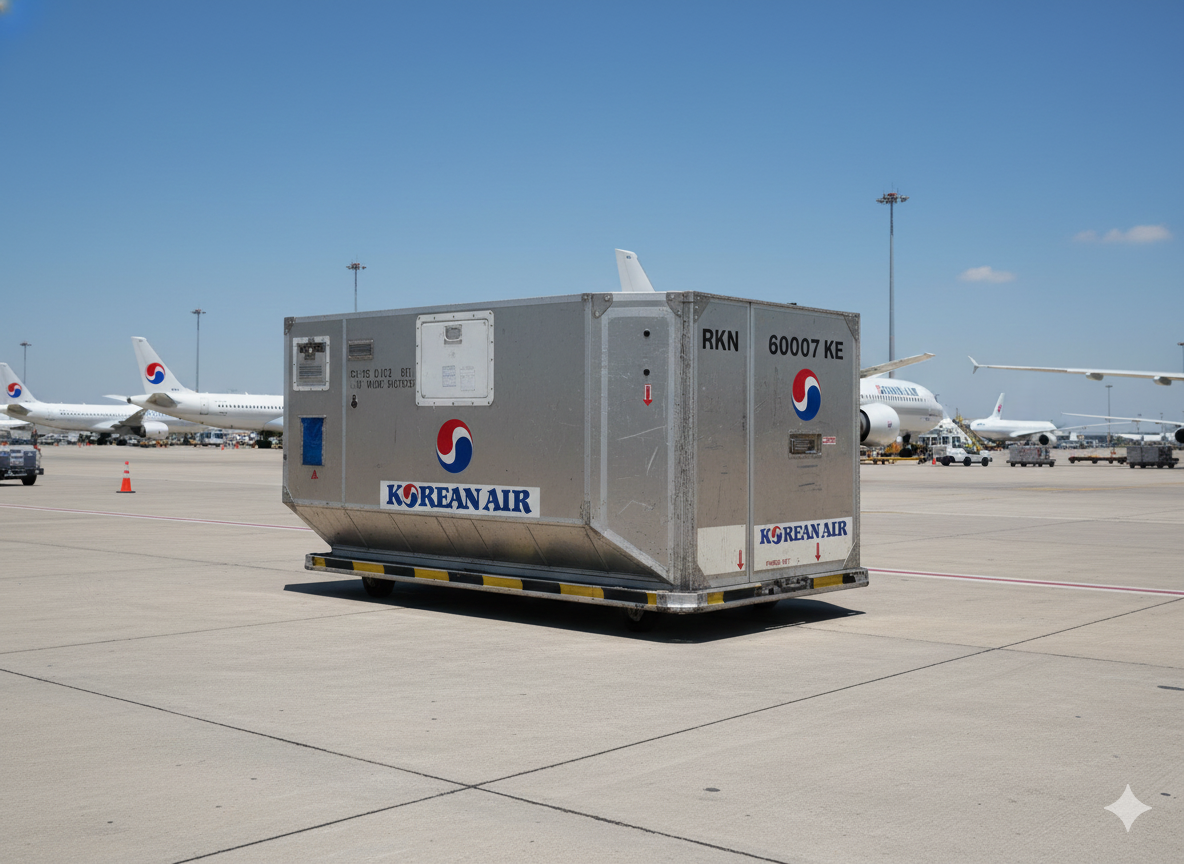

LD3 REFRIGERATED CONTAINER
| ULD TYPE (IATA CODE) |
UTILITY | LOADING POSSIBLE AIRCRAFT TYPE |
| LD3 REFRIGERATED CONTAINER (RKN) |
PERISHABLE, FROZEN CARGO-EQUIPPED WITH AUTOMATED TEMPERATURE SYSTEM |
B747 B747F B777 B777F A380 A330 A300 (LOWER DECK ONLY) |
| MAX CAPACITY (TARE WEIGHT) |
DIMENSION (INCH) |
|
| 1,588KG (257KG) | 60.4 x 61.5 x 64 |
LD6 CONTAINER
| ULD TYPE (IATA CODE) |
UTILITY | LOADING POSSIBLE AIRCRAFT TYPE |
| LD6 CONTAINER (RKN) |
GENERAL CARGO |
B747 B747F B777 B777F A380 A330 A300 (LOWER DECK ONLY) |
| MAX CAPACITY (TARE WEIGHT) |
DIMENSION (INCH) |
|
| 1,588KG (257KG) | 60.4 x 61.5 x 64 |

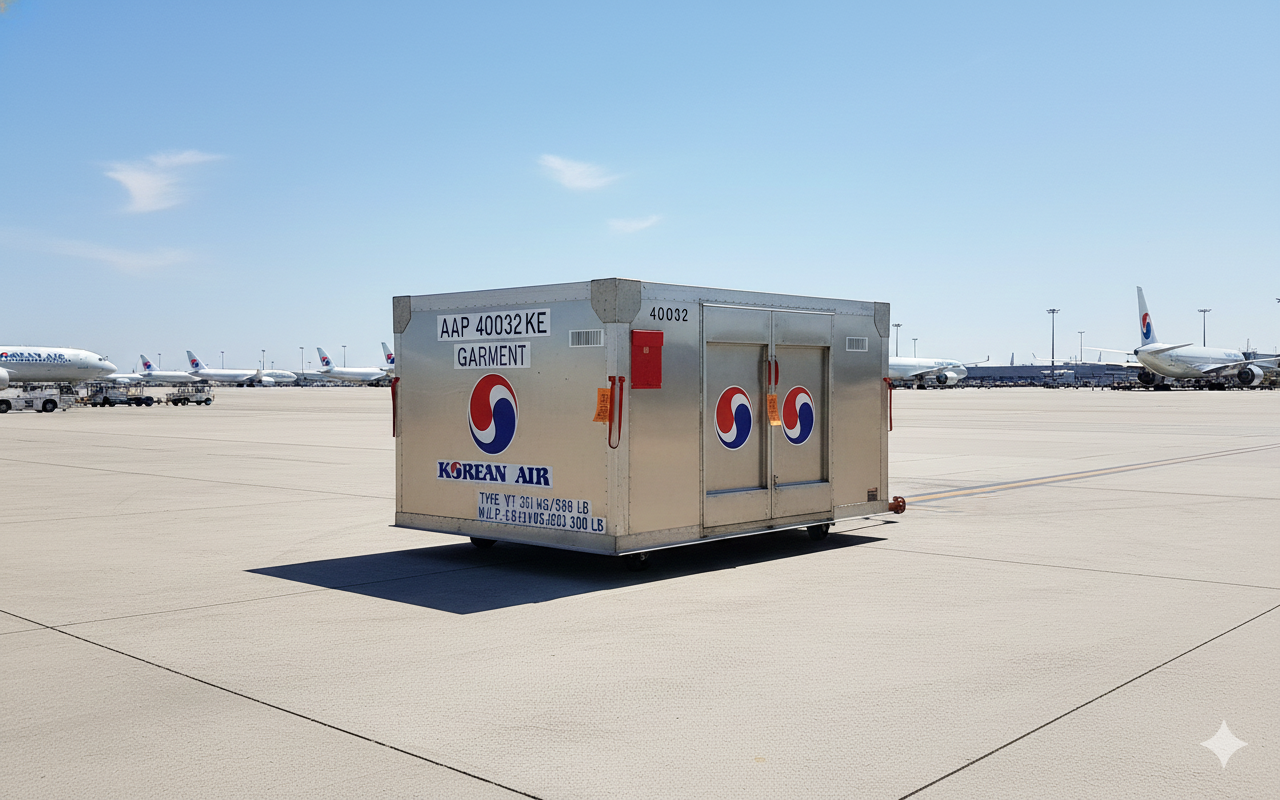

LD9 CONTAINER (AAP)
| ULD TYPE (IATA CODE) |
UTILITY | LOADING POSSIBLE AIRCRAFT TYPE |
| LD9 CONTAINER (AAP) |
GENERAL CARGO |
B747 B747F B777 B777F A380 A330 A300 (LOWER DECK ONLY) |
| MAX CAPACITY (TARE WEIGHT) |
DIMENSION (INCH) |
|
| 6,033KG (277KG) | 88 x 125 x 64 |

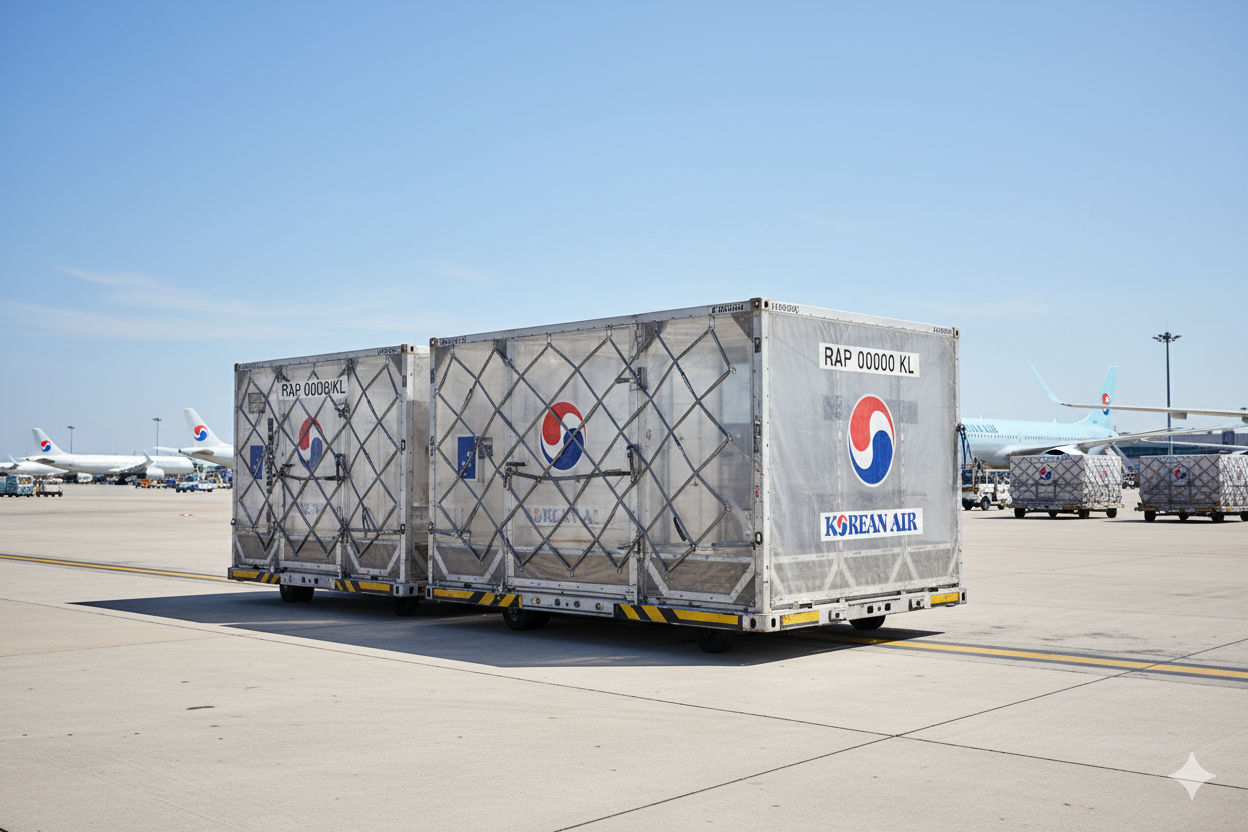

LD9 REFRIGERATED CONTAINER (RAP)
| ULD TYPE (IATA CODE) |
UTILITY | LOADING POSSIBLE AIRCRAFT TYPE |
| LD9 REFRIGERATED CONTAINER (RAP) |
PERISHABLE, FROZEN CARGO |
B747 B747F B777 B777F A380 A330 A300 (LOWER DECK ONLY) |
| MAX CAPACITY (TARE WEIGHT) |
DIMENSION (INCH) |
|
| 6,033KG (519KG) | 88 x 125 x 64 |

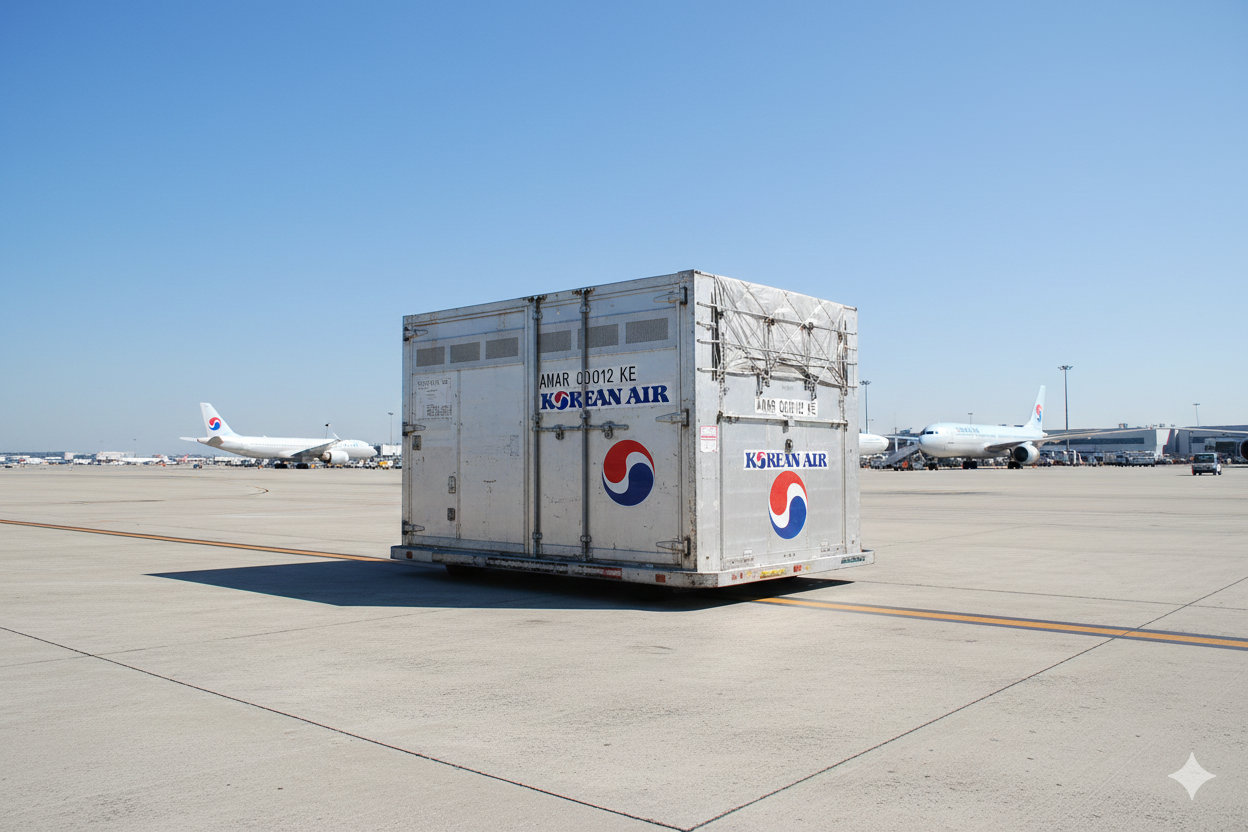

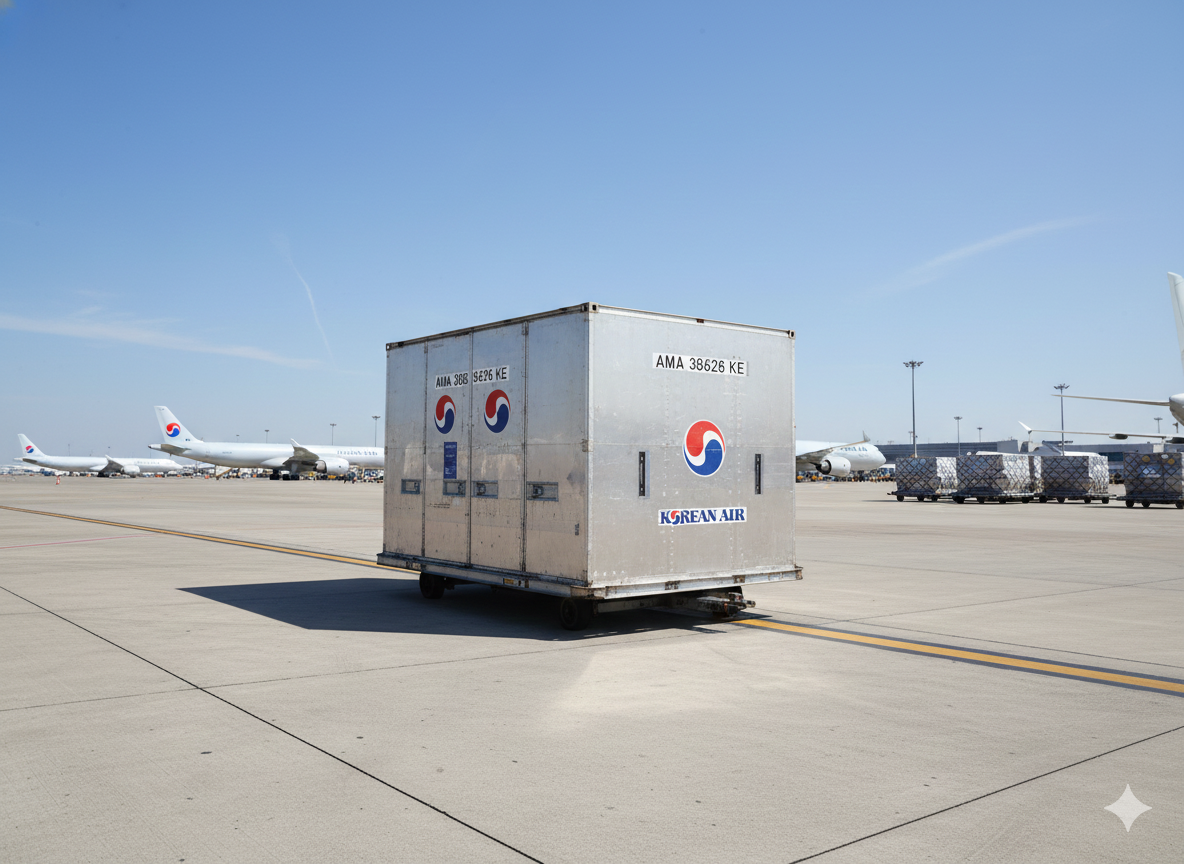

GM1 CONTAINER (AMA)
| ULD TYPE (IATA CODE) |
UTILITY | LOADING POSSIBLE AIRCRAFT TYPE |
| GM1 CONTAINER (AMA) |
GENERAL CARGO |
B747F (MAIN DECK ONLY) B777F (CENTER LOADING ONLY) |
| MAX CAPACITY (TARE WEIGHT) |
DIMENSION (INCH) |
|
| 6,804KG (410KG) | 96 x 125 x 96 |
HORSE STALL (HWA)
| ULD TYPE (IATA CODE) |
UTILITY | LOADING POSSIBLE AIRCRAFT TYPE |
| HORSE STALL (HWA) |
HORSES |
B747F (MAIN DECK ONLY) B777F (CENTER LOADING ONLY) |
| MAX CAPACITY (TARE WEIGHT) |
DIMENSION (INCH) |
|
| 6,804KG (945KG) | 96 x 125 x 94.5 |
HORSE STALL (HWC)
| ULD TYPE (IATA CODE) |
UTILITY | LOADING POSSIBLE AIRCRAFT TYPE |
| HORSE STALL (HWC) |
HORSES |
B747F B777F (MAIN DECK ONLY) |
| MAX CAPACITY (TARE WEIGHT) |
DIMENSION (INCH) |
|
| 6,804KG (875KG) | 96 x 125 x 94.5 |
