OCEAN CONTAINER INFORMATION
전국 주요 항만 및 물류 거점을 잇는 최적의 운송 솔루션

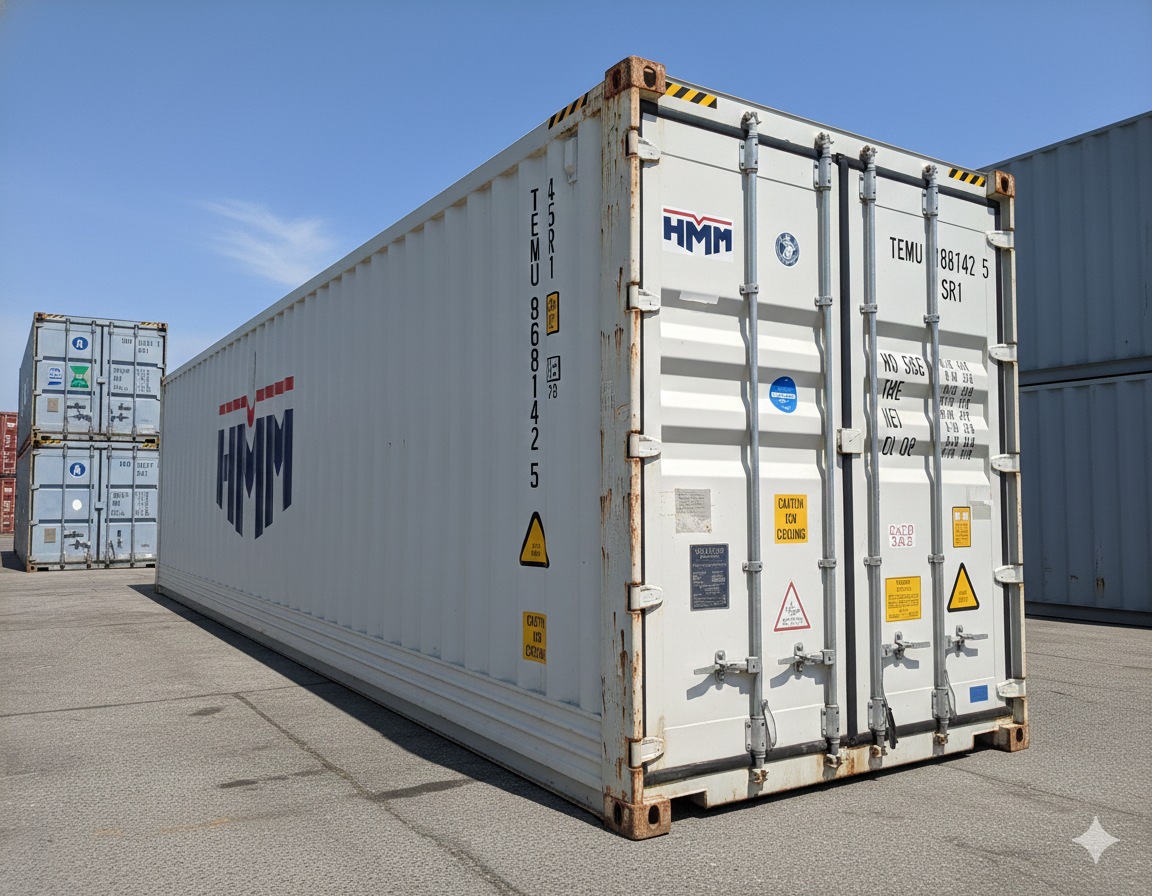

DRY CONTAINER
| CONTAINER TYPE | 20FT | 40FT | 40HC | 45FT |
|
INTERNAL DIMENSION (mm) |
5,898 | 12,032 | 12,032 | 13,557 |
| 2,352 | 2,352 | 2,352 | 2,352 | |
| 2,392 | 2,392 | 2,698 | 2,698 | |
|
DOOR OPENING (mm) |
2,340 | 2,340 | 2,340 | 2,340 |
| 2,280 | 2,280 | 2,585 | 2,585 | |
|
WEIGHT (kgs) |
2,290 | 3,890 | 4,150 | 4,880 |
| 21,710 | 26,590 | 26,330 | 25,600 | |
| 24,000 | 30,480 | 30,480 | 30,480 | |
| CAPACITY (CBM) | 33 | 68 | 76 | 86 |
REEFER CONTAINER
| CONTAINER TYPE | 20FT STANDARD |
40FT STANDARD |
40FT HC MAGNUM |
45FT ULTRA FREEZER |
|
INTERNAL DIMENSION (mm) |
L : 5,456 | L : 11,580 | L : 11,590 | L : 11,550 |
| W : 2,286 | W : 2,290 | W : 2,280 | W : 2,203 | |
| H : 2,271 | H : 2,545 | H : 2,537 | H : 2,485 | |
|
DOOR OPENING (mm) |
W : 2,294 | W : 2,294 | W : 2,290 | W : 2,312 |
| H : 2,264 | H : 2,567 | H : 2,569 | H : 2,562 | |
|
WEIGHT (kgs) |
TARE : 3,120 | TARE : 4,900 | TARE : 4,650 | TARE : 5,890 |
| PAYLOAD : 27,360 | PAYLOAD : 29,100 | PAYLOAD : 30,350 | PAYLOAD : 28,110 | |
| GROSS : 30,480 | GROSS : 34,000 | GROSS : 35,000 | GROSS : 34,000 | |
| CAPACITY (CBM) | 28 | 68 | 67 | 63 |
| TEMPERATURE (°C) | -30 ~ +30 | -30 ~ +30 | -40 ~ +30 | -60 ~ -30 |
OPEN TOP CONTAINER
| CONTAINER TYPE | 20FT | 40FT |
|
INTERNAL DIMENSION (mm) |
L : 5,898 | L : 12,032 |
| W : 2,352 | W : 2,352 | |
| H : 2,366 | H : 2,360 | |
|
DOOR OPENING (mm) |
W : 2,340 | W : 2,340 |
| H : 2,280 | H : 2,280 | |
|
WEIGHT (kgs) |
TARE : 2,400 | TARE : 3,840 |
| PAYLOAD : 28,080 | PAYLOAD : 28,660 | |
| GROSS : 30,480 | GROSS : 32,500 | |
| CAPACITY (CBM) | 33 | 67 |

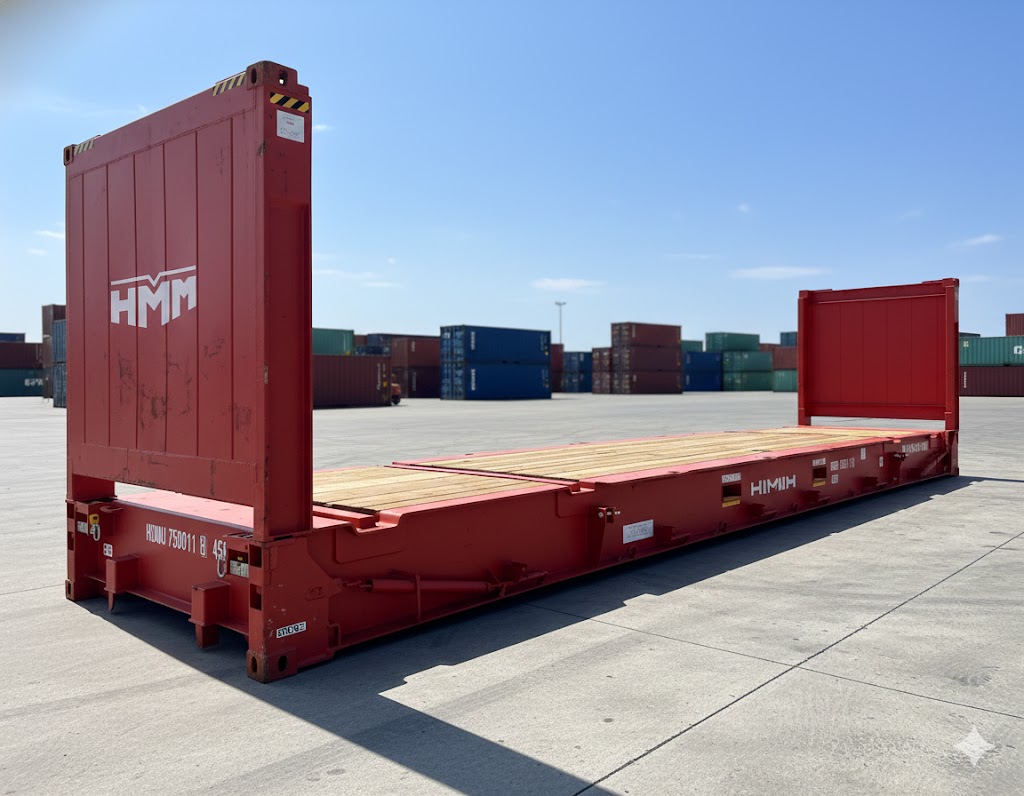

FLAT RACK CONTAINER
Flat rack container specifications for heavy, oversized, and project cargo
| CONTAINER TYPE | 20FT | 40FT |
|
INTERNAL DIMENSION (mm) |
L : 5,638 | L : 11,776 |
| W : 2,228 | W : 2,230 | |
| H : 2,233 | H : 1,955 | |
|
DOOR OPENING (mm) |
- | - |
| - | - | |
|
WEIGHT (kgs) |
TARE : 2,890 | TARE : 4,600 |
| PAYLOAD : 31,110 | PAYLOAD : 40,400 | |
| GROSS : 34,000 | GROSS : 45,000 | |
| CAPACITY (CBM) | 31 | 56 |
